Golden Samurai ST2K

product power:2kW

product capacity:2KVA 【View products of the same capacity】

series:High frequency ST series 【View the same series of products】

voltage input and output:Single input single output (220V:220V)

weight:13.5 kg

size（LWH）:430*144*224mm

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation

    • ST 2K detailed parameter table

    capacity2KVA/2000W
    modelST 2K

    ST 2K input parameters

    Rectifier typeIGBT rectification
    Rated voltage220Vac
    Input voltage range90-285 VAC single-phase two-wire + ground wire
    Input frequency range40Hz~70Hz（Adjustable）
    Input power factor≥0.99

    ST 2K output parameters

    Rated output power2KVA / 2000 W
    Rated output voltage220Vac (1±2%) single-phase two-wire + ground wire
    Output frequency46-54Hz synchronous mains; 50Hz (mains between 40-46Hz and 54-60Hz); 50Hz (battery)
    Way of workingOnline
    Output waveformSine wave
    Conversion time0ms
    Overload capacity105%±5%＜load≤125%±5%: switch to bypass output and alarm after 50 seconds; 125%±5%＜load≤150%±5%: switch to bypass output and warning after 25 seconds; load＞ 150%±5%: switch to bypass output and alarm after 300 milliseconds

    ST 2K battery and runtime

    >

    battery modelMaintenance-free lead-acid battery
    DC voltage72Vdc
    recharging current1A

    ST 2K system parameters and standards

    Installation methodTower
    Overall efficiencyUp to 90%
    Electromagnetic CompatibilityICE/EN/AS 62040-1; CISPR 22 Class A
    Surge protectionICE/EN 62040-2, meet ICE/EN 61000-4-5
    Protection typeIP20

    ST 2K communication and management

    Interface portRS232, optional Wedpower card, AS400 card
    control panelLED status indication
    Audible alarmAlarm once every 4 seconds when mains power fails: special low battery alarm once every second

    ST 2K physical indicators

    W144.00 mm
    D430.00 mm
    H224.00 mm
    weight13.50 KG
    colourblack

    ST 2K environment

    working environment0 - 40 °C
    Relative humidity20% - 95%
    Operating height0-1500 meters
    storage temperature-5 - 45 °C
    Storage relative humidity0 - 95%
    Storage height0-1500 meters
    Audible noise at 1 m from the surface of the device≤50 dB

    ST 2K warranty

    Standard warranty 3 years



    The backup machine adopts national standard plug and socket, please use according to the manual

    800×800

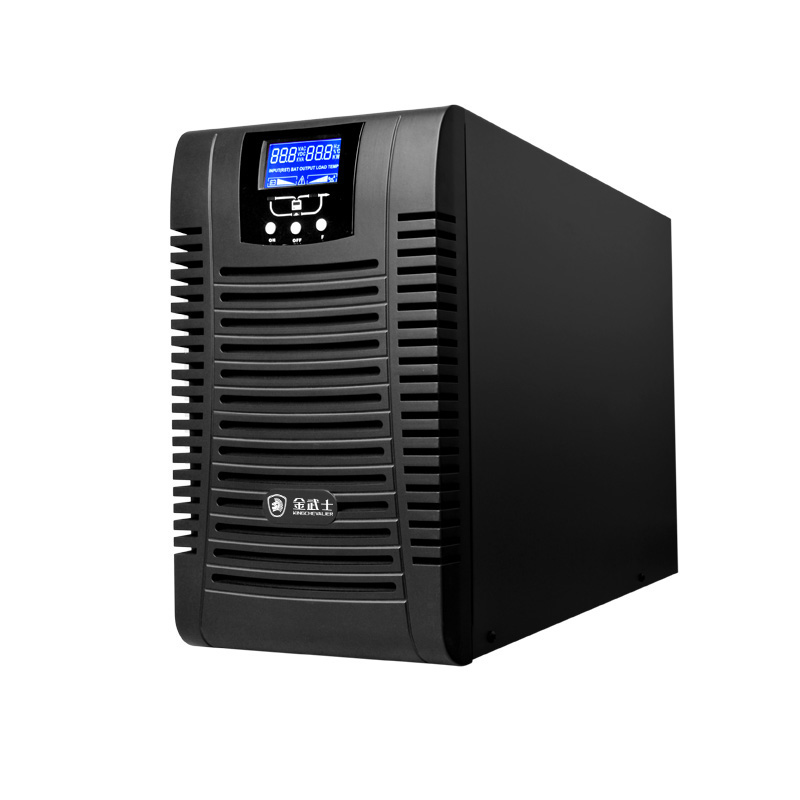

    Golden Samurai ST2K
    500×500
    Golden Samurai ST2K_1

    500×500
    Golden Samurai ST2K_2

    500×500
    Golden Samurai ST2K_3

    500×500
    Golden Samurai ST2K_4

    Backup model: One year warranty, one year warranty for built-in battery


    Online models: three-year warranty


    12V24AH capacity battery products: three-year warranty


    After-sales service contact information throughout the country: Contact us


    7*24 hours service telephone: 400-830-8833
